Metallurgical Microscopes

Metallurgical microscopes from QS Metrology
We have more than a decade’s experience in Metallurgy domain. We bring you world class products – Metallurgical microscopes and Image Analysis software for metallography studies. Our Metallurgical microscopes are the result of our decade long exposure to Metallurgical domain.

Please browse through our different models:

Metallurgical Microscopes - QS-17 AT

Ask for Price

Specifications
Mechanical Body

Axial focusing controls with large knobs, Pre-Focussing Lever and Tension Adjustment Ring.
Inverted quadruple nosepiece revolves on ball bearings.
Mechanical stage is 150 X 200 mm.
The mechanical stage has low positioned co-axial controls on balls rolling on guide ways.
Hand rest on both sides

Trinocular Head:

Trinocular Siedentopf head inclined at 30 degree.
Phototube for photomicrography
Diopter adjustment ring on ocular tube
Interpupiliary distance from 55 mm to 75 mm

Illuminator
Koehler’s illumination system with 6 V / 20 W halogen lamp, adjustable brightness.

Eye Piece:
Wide field 10X,(20mm)

Objectives
Achromatic objective PL 10X, PL 20X, PL 40X, PL 100X

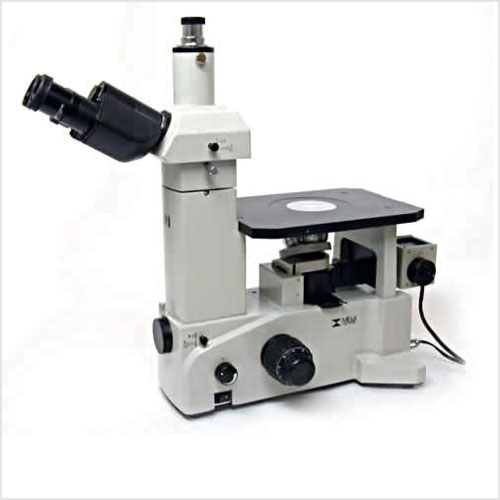

Metallurgical Microscopes - XJL-20

Ask for Price

XJL-20/20BD Inverted Trinocular Metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

Specification
Eyepiece	Wide field WF10X(field number:22mm)
Objective	XJL-20 Equipped with bright field objectives	PL L10X/0.25 (Work distance) - 20.2 mm
		PL L20X/0.40 (Work distance) - 8.80 mm
		PL L50X/0.70 (Work distance) - 3.68 mm
		PL L100X/0.85£¨Dry£© (Work distance) - 0.40 mm
	XJL-20BD Equipped with bright & dark field objectives	PL L5X/0.12 BD (Work distance) - 9.70 mm
		PL L10X/0.25 BD (Work distance) - 9.30 mm
		PL L20X/0.40 BD (Work distance) - 7.23mm
		PL L50X/0.70 BD (Work distance) - 2.50 mm
Eyepiece tube	Inclination angle is 45° and interpupillary distance is 53~75mm.
Focus system	Coaxial coarse/fine focus, with tension adjustable minimum division of fine focusing is 2µm.
Nosepiece	Quintuple (Backward ball bearing inner locating)
Stage	Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.
	Rotundity and rotatable stage size: maximal measurement is ?130mm and minimal clear aperture is less then ?12mm.
Illumination system	6V30W halogen and brightness enable control., use in XJL-20
	12V50W halogen and brightness enable control., use in XJL-20BD
	Integrated field diaphragm , aperture diaphragm and puller type polarizer.
	Equipped with frosted glass and yellow ,green and blue filters

Optional accessories

Name	Sort/Technique parameter		NO
Eyepiece	Dividing eyepiece(22mm)	Equipped with bright field objectives	1122010
Objective	PL L5X/0.10 (Work distance):26.12 mm		2260105
	PL L40X/0.60 (Work distance):3.68 mm		2260140
	PL L60X/0.70 (Work distance):3.18 mm		2260160
	PL L80X/0.80 (Work distance):1.28 mm		2260180
	PL L40X/0.60 BD (Work distance):3.00 mm	Equipped with bright & dark field objectives	2120140
	PL L60X/0.70 BD (Work distance):1.90 mm		2120160
	PL L80X/0.80 BD (Work distance):0.80mm		2120180
	PL L100X/0.85 BD (Work distance):0.22 mm		2120100
CCD Adapter	0.5X		812004
	1X		812002
	0.5X with dividing 0.1mm/Div		812003
Camera	DV-1 Video output 380/520 TV line USB output 0.42 M pixel		800001
	DV-2 With USB output 1.3M,2.0M,3.0M pixel		800003
	DV-3 With video output 380/520 TV line		800005
Digital camera adapter	CANON(EF) NIKON( F)		820001

Metallurgical Microscopes - NIM-100

Ask for Price

Have Infinitive Optical System which provides excellent optical functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy

Specifications:

Viewing Head	Trinocular head inclined at 30°, interpupillary distance 48-75mm
Eyepiece	High-point , extra wide field eyepiece EW10×/ 20
Infinite Plan Achromatic Objective	4×/ 0.1
	10×/ 0.25
	20×/ 0.40
	40×/ 0.60
	50×/ 0.75
	80×/ 0.90
Nosepiece	Quintuple nosepiece
Stage	Plain stage
	Attachable mechanical stage, X-Y coaxial control, moving range 120×78mm
	Auxiliary stage
Focusing	Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation
Kohler Illumination	Halogen lamp 6V/ 30W
Filter	Blue, Yellow, Green and Ground Glass
Polarization Attachment
Photo Attachment
Video Adapter	Video adapter with C mount

Yes! I am Interested

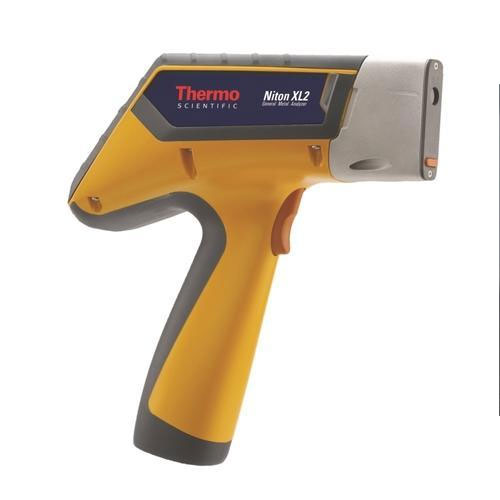

Handheld XRF Machine Niton XL2 100G

Ask for Price

The value choice Thermo Scientific TM NitonTMXL2 analyzer offers high performance and advanced electronics while maintaining the point-and-shoot simplicity that is the hallmark of all our x-ray fluorescence (XRF) instruments. Sealed against moisture anddust with 100% embedded software tools,these analyzers are lightweight yet ruggedlybuilt to withstand the harshest environments - in the field or on the shop floor.Ergonomically designed and featuring daylight-readable icons, the Niton XL2100G incorporates customizable menus,multiple language options, and a standard analytical range of 25 elements from titanium to bismuth.

Product Details :

Minimum Order Quantity	1 Unit
Application	Industrial Use, Laboratory Use
Brand	ThermoFisher scientific
Condition	New
Connectivity	cable, bluetooth
Display Type	digital
Measurement Time (s)	15
Model	NITON XL2 100G
Software	NDT
Time To Result (min)	0.5
Warranty	1 year
Weight With Battery (kg)	1.53
Wi Fi Enable	No

Yes! I am Interested

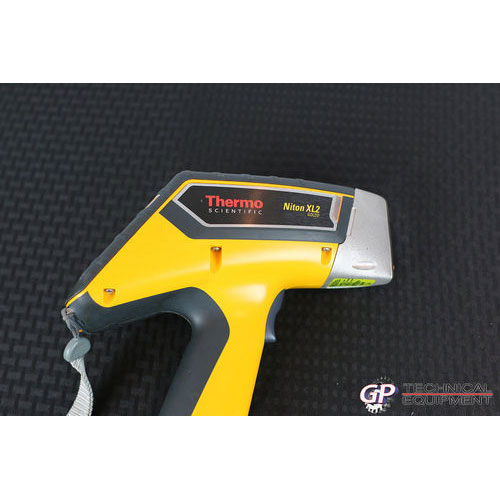

Handheld XRF Machine Niton XL2 980 Goldd

Ask for Price

The performance-leading Thermo ScientificTMNitonTM XL2 GOLDD analyzer offers premierperformance and advanced electronics whilemaintaining the point-and-shoot simplicity thatis the hallmark of all of our x-ray fluorescence(XRF) instruments. With our groundbreakingGOLDD™ technology, your analyticalcapabilities are taken to a whole new level.The direct benefits to you include: real-timeresults, light element analysis, and advancedperformance in our value package.The Niton XL2 GOLDD analyzer also includes astandard integrated camera to ensure accuratepositioning on the area of interest to captureand store an image for review or inclusionin reports.Ergonomically designed and featuringdaylight-readable icons, the Niton XL2 GOLDDincorporates customizable menus, multiplelanguage options, and a standard analyticalrange of up to 30 elements from magnesiumto uranium. Sealed against moisture and dustwith 100% embedded software tools, theseanalyzers are lightweight yet ruggedly built towithstand the harshest environments – in thefield or on the shop floor.

Additional Information :

Delivery Time : 4 weeks

Product Details :

Minimum Order Quantity	1 Unit
Application	Industrial Use, Laboratory Use
Brand	ThermoFisher scientific
Condition	New
Connectivity	Bluetooth , Cable
Detector	Geometrically Optimized Large Area Drift Detector
Display Type	digital
Measurement Time (s)	15
Model	XL2 980
Software	NDT
Time To Result (min)	0.5
Warranty	1 year
Weight With Battery (kg)	1.53
Wi Fi Enable	No

Yes! I am Interested
