Mounting Machines

QS Metrology brings you high-quality Pneumatic specimen mounting press – OPTIMOUNT - P

Mounting Machines - OPTIMOUNT - P

Specifications

Corrosion resistant steel Cabinet
Pneumatic operation System
Digital Temperature Indicator and digital timer
Quick Ram return to speed up reloading
1500 Watts mould Heater
Dovetail slot for easy changeability of Mould Assemblies
Water Cooling System (manual)
Timer-Buzzer indication for heating and cooling cycles
Wide range of sample sizes can be accommodated
Provision to accommodate 1 ½" & 2" Mould Sizes
1¼” comes with the machine as a standard
Power Supply : 230V / 50Hz ( 1 + N + E )
Size: 580x620 x 590mm

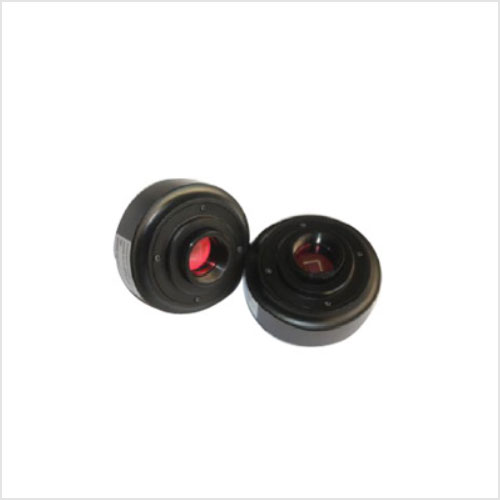

MD90 - 9 MP CMOS Cameras

We are leading supplier of MD90 - 9 MP CMOS Cameras. We offer a wide range of imaging cameras (CMOS) for vision applications. These cameras are of high quality and provide clear and sharp images for vision and imaging applications. All our cameras are USB cameras, which can be connected to a USB port of your PC or laptop. We offer cameras with different pixel capacity

Ask for Price

Key Parameters

9.0 megapixels, progressive scanning CMOS sensor.
No compression, no interpolation.
Support still image capture (JPG, BMP)
USB2.0 interface, up to 480MPS, external power no need.
Standard C-MOUNT, durable aluminum alloy casing

Feature

9.0 megapixels, providing excellent high-quality and high-resolution images
USB2.0 design makes it easy to realize the connections between PC and the camera.
The application software interface is much simple too.
Standard C-Mount makes the connection to any standard trinocular microscope, such as a stereo zoom microscope, metallograph microscope.
Easy-to-operate with strong compatibility operating the software. Auto control of exposure, contrast, brightness, saturation, image size etc.
Support video functions, easy to preserve and transfer. Added a projector, MD10 can be used to teaching and presentation too

Specifications

Camera Resolution : 9 MP
Pixels Size : 1.75 x 1.75 micron
Operating Temperature : -30 to 70 degree Celsius
S/N Ratio : 40.5 dB
