Contour Testing Machine from Zeiss-TSK

The detection and evaluation of profiles through stylus method has come of age and is considered to be an accurate way of determining the contour geometry. Accretech offers superior solutions for contour measurement with some of the path breaking technologies. The first linear motor technology in Contour Testers was introduced by Accretech.

Ask for Price

Salient features:

• Auto Element Judgment (AI Function)
  The 1600D automatically determines the type of element (point-line-circle).
• Dimension Display Function
  The actual measured values for parameters and geometric deviation can be displayed on the diagram.
• Profile Synthesis Function
  The limitations on the analysis range due to the angle of the stylus are addressed with the synthesis function.
• Peak and Valley Function
  This function enables the maximum workpiece point to be detected by tracing with the stylus, simplifying alignment.
• Calculation Point Repeat Function
  Overall work piece analysis can be executed after completing only one pattern analysis for work pieces where certain shapes are repeated.
• Work piece Trace Function
  The measuring range can be determined by tracing the work piece once. This is effective for measurement of minute profiles.
• Easy Evaluation of Part Contour
  Exact data on parts that were previously evaluated with a projector or tool microscope can be obtained in a short period of time. The measured results can be used as is for inspection reports.

• High Efficiency Measurement
  The teaching/playback function automates the entire process, from measurement to pasting of the data into an inspection report

Ask for Price

Salient Features:

• Fast, easy and precise completion of contour measuring tasks
• Patented linear motor technology
• High straightness accuracy and glass scale in the X axis
• Extensive accessories enable a large range of applications
• All axes CNC controlled
• Automated calibration function
• Software compensates for sensing arm and stylus tip geometries
• Upgradeable using modularly adaptable CNC tables
• Also expandable for 2D and 3D surface measuring tasks
• Fully enclosed DX version with integrated active vibration damping

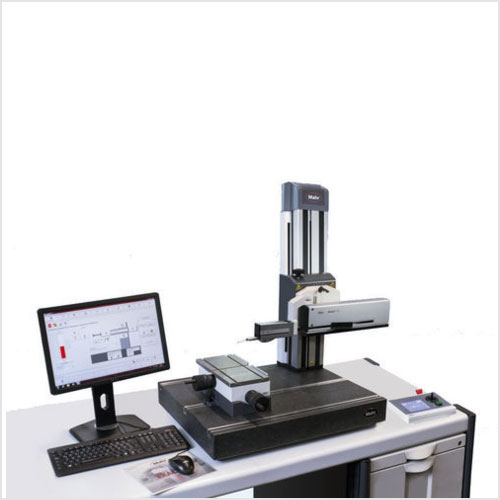

• Contourecord 1700 with inductive displacement transducer (LVDT) in the probing system
