Video Measuring System - CNC Models

We offer both 2 D as well as 3 D models under CNC machines.


Video Measuring System - 2D Models

Video Measuring System - 3D Models

Video Measuring System - 2D Models

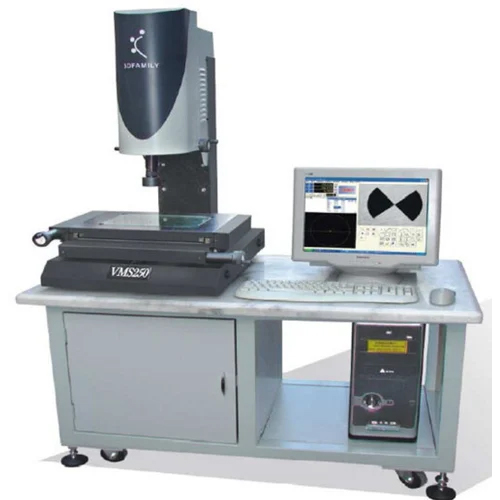

VMC-S-2D (CNC)
VMC-S-2D (CNC)
  • Granite base and stand
  • CNC (For X, Y, Z axis) 2D Vision Measurement Machine
  • Measure range (mm): 250X150X200, 300X200X200, 400X300X200
  • Scale resolution: 0.001 mm (1 micron)
  • Repeatability: +/- 0.002 mm (2 microns)
  • Accuracy: 3 microns + (L/200 in mm)
  • Laser indicator can point current measuring position accurately
  • Programmable 4-quadrant ring surface light with the coaxial profile light
  • Software: OVM Pro

Ask for Price



Yes! I am Interested

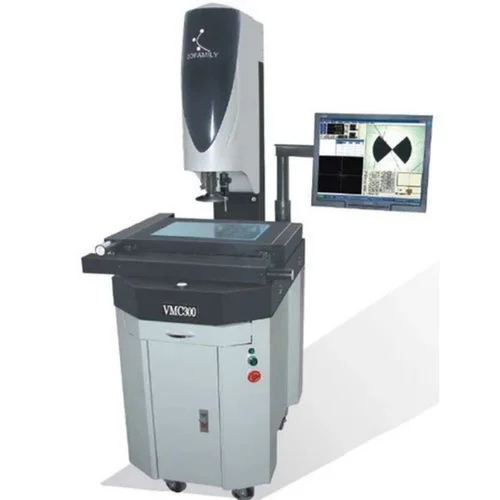

VMC-2D (CNC)
VMC-2D (CNC)
  • Granite base and stand
  • CNC (Fully automatic) 2D Vision Measurement Machine
  • Measure range (mm): 250X150X200, 300X200X200, 400X300X200
  • Scale resolution: 0.001 mm (1 micron)
  • Repeatability: +/- 0.002 mm (2 microns)
  • Accuracy: 3 microns + (L/200 in mm)
  • Navitar lens
  • Laser indicator can point current measuring position accurately
  • Programmable 4-quadrant ring surface light with the coaxial profile light
  • Software: OVM Pro

Ask for Price



Yes! I am Interested


Video Measuring System - 3D Models

VMC-S-3D (CNC)
VMC-S-3D (CNC)
  • Granite base and stand
  • CNC (For X, Y, Z axis) 3D Vision Measurement Machine with RENISHAW touch probe
  • Measure range (mm): 250X150X200, 300X200X200, 400X300X200
  • Scale resolution: 0.001 mm (1 micron)
  • Repeatability: +/- 0.002 mm (2 microns)
  • Accuracy: 3 microns + (L/200 in mm)
  • Laser indicator can point current measuring position accurately
  • Programmable 4-quadrant ring surface light with the coaxial profile light
  • Software: OVM Pro

Ask for Price



Yes! I am Interested


VMC-3D (CNC)
VMC-3D (CNC)
  • Granite base and stand
  • CNC (Fully automatic) 3D Vision Measurement Machine with RENISHAW touch probe
  • Measure range (mm): 250X150X200, 300X200X200, 400X300X200
  • Scale resolution: 0.001 mm (1 micron)
  • Repeatability: +/- 0.002 mm (2 microns)
  • Accuracy: 3 microns + (L/200 in mm)
  • Navitar lens
  • Laser indicator can point current measuring position accurately
  • Programmable 4-quadrant ring surface light with the coaxial profile light
  • Software: OVM Pro

Ask for Price



Yes! I am Interested
