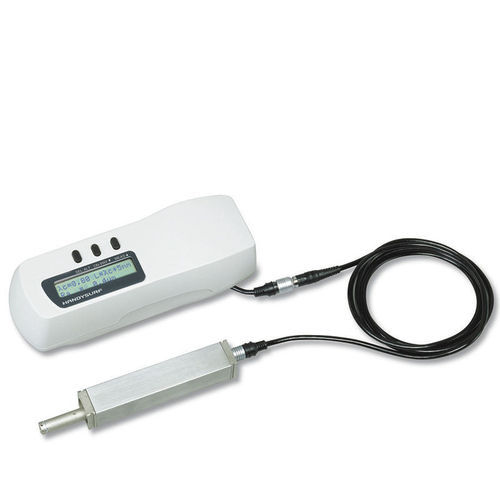

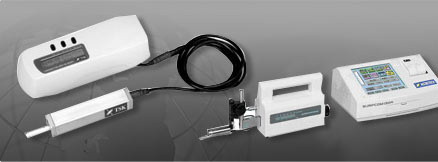

Portable Model Handysurf E35B

Ask for Price

We offer Portable Surface Roughness Tester from Zeiss-TSK, packed with powerful functions for convenient operations.

All Functions for convenient Operations

Complies with major International standards such as ISO, DIN, CNOMO, JIS, ASME

Data Memory/Battery Operation: Ten complete Data records can be stored.Rechargeable battery operation provides versatile usof the line independent of the line supply.

Measuring in different positions: The small and light handysurf measures not only flat,horizontal,but also vertical and overhead surfaces.

Direct data Transfer to the PC- The RS 232 serial interface is used to transfer measured data,parameters and profile curves  directly to the PC.

Specifications

• Measuring Range: Z axis +/- 160 um, X Axis 12.5 mm
• Resolution : 0.01 um
• Standards: JIS 2001, JIS-1994,JIS 1982,ISO-1984,DIN-1990,ASME-1995,CNOMO
• Parameters: Pt, Ra, Rq, Rz, Rzmax, Rp, Rt, R3z, RSm, Pc, Rk, Rpk, Rvk, Mr1, Mr2, VO, K, Rmr, R, Rx, AR, W, Wx, AW, Wte
• Evaluation Curves: Section Profile Curve,Roughness Curve,ISO 13565

Ask for Price

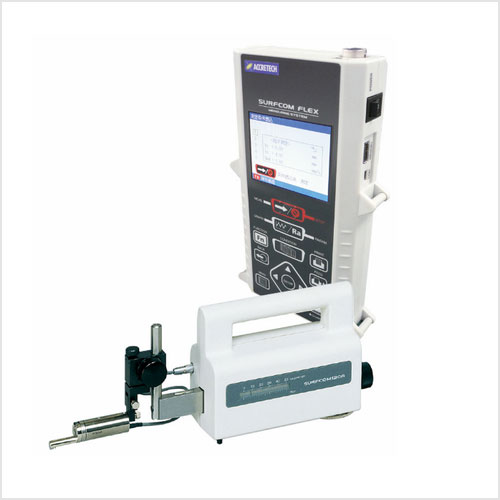

Small. Easy. Flexible.
The small unit is easy to carry with its compact design, can be used anywhere. Get output quickly with the built-in printer. The large 3.5 inch color LCD is easy to read and operate.
Select tracing driver according with work piece. Measure flexible, from simple measurement to waviness measurement. Use current tracing driver combination E-35A/B, E-40A, E-45A or S130A with the FLEX amplifier.
Save up to 5 measurement condition and 30 results with the internal memory. Additional USB memory can be used save more data. Mini USB connector allows you to connect with a PC for analysis.

Ask for Price

The Surface Roughness Tester offered by us measures surface texture of metal and non-metal parts. The small and compact size makes it easily transportable. The artificial intelligence functions automatically select the ideal cut off value, measuring range and other conditions. It is user friendly and supports wide range of styli options.

SURFCOM 130A make: ZEISS

Salient features:

• Top Flight Performance in Production
• Best of class Straightness Accuracy 0.3um/50 mm
• Easy Change of Stylish
• Wide Range of styli options
• 50 mm traverse length, built in datum plane and large measuring range detector
• Selectable Amplifier LCD touch panel
• Handy, compact use
• Analysis parameters catering to worldwide requirements
• Artificial Intelligence functions automatically select the ideal cut off value, measuring range and other conditions. This automates measurement.
• Host of Analysis Functions- incorporates 34 types of roughness and 32 waviness parameters.
• Tilt Correction Function: Six type of automatic tilt correction are provided.
• Evaluation Range Setting- The waveform on the screen is enclosed by two cursors, allowing the desired range to be set and the parameters to be calculated.
• PC Card Slot- Measuring Conditions, Measured result management or measured data can be output in binary and text format.

SPECIFICATIONS:
Measuring Range: X Axis- 50mm
Z axis - 800µ mm (Measuring range resolution: 800µm/10nm, 80µm/1nm, 8 µm/0.1nm)

Straightness accuracy:  0.3µm/50mm

Analysis items:

Standards: Complies with JIS-2001, JIS-1994, JIS-19822, ISO- 1997, ISO-1984, DIN-1990, ASME-1995, and CNOMO.

Parameters:  Ra, Rq, Ry, Rp, Rv, Rc, Rz, Rmax, Rt, Rz,J, R3z, Sm, S, R ?a, R ?q, R ?a, R ?q, TILT A, Ir, Pc, Rsk, Rkpk, Rvk, Mr1, Mr2, VO, K, tp, Rmr, Tp2, Rmr2, R dc, AVH, Hmax, Hmin, AREA, NCRX, R, Rx, AR, NR, CPM, SR, SAR

Evaluation curves: Section profile curve, filtered waviness curve, filtered center line waviness curve, rolling circle waviness curve, rolling circle center line waviness curve, DIN4776 special curve, roughness motif curve, envelope waviness curve

Surface Characteristics graphs: Bearing area, curve, amplitude distribution (ADF) curve, power graph

TILT Correction: Linear correction, first half correction, latter half correction, both end correction, spline curve correction

Magnification : Vertical (Z-axis)- 50-100K Auto, Horizontal (X-axis): 1-5K auto

Detector : Tip radius 2µm, material diamond

Special functions: Artificial Intelligence functions, step analysis, PC card

Standard Accessories: Standard specimen, Recording Paper, Touch Pen, Instruction Manual

Ask for Price

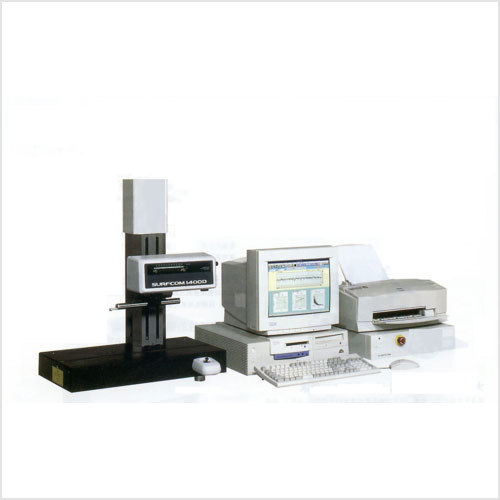

Surface Texture Measuring Instrument with Outstanding Operating Ease

• Adopts a TFT color LCD touch panel with a wide field of view.
• Contains a customize function that allows you to display necessary icons only. This offers efficient measurements.
• Has an AI function in which you can perform measurements by simply entering parameters and allowable values.
• Contains a guidance function that displays operation procedures for novice users.
• The use of a memo function useful for data arrangement allows you to print simple graphics and characters drawn on a memo screen onto recording paper.
• Has a PC card.
• Supports ISO, DIN, ASME and CNOMO standards in addition to new and old JIS.

Ask for Price

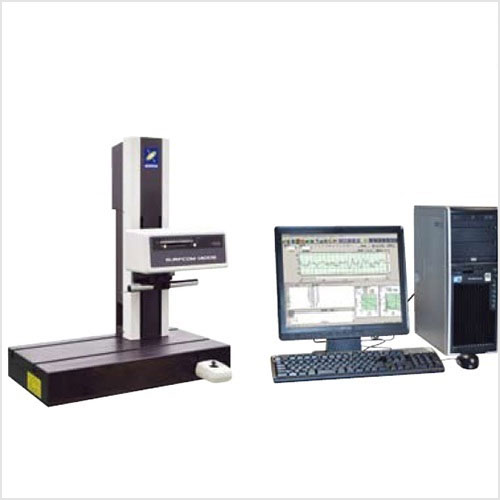

• Superior Operating Easy & Automation from Measurements to Inspection Report Creation
• Easy operations using superior graphical user interface
• The measurement results can be formatted according to individual requirements and printed as an inspection report.
• Incorporates the control unit in a CPU slot, and direct bus connection resulted in short measuring time
• Achieves fully automatic operation of making measurements to preparation of inspection reports

Ask for Price

The comfortable measuring station for surface measurements.
Maximum performance, minimal effort.

• Fast, easy and precise completion of surface measuring tasks
• Patented linear motor technology
• Wide range of accessories
• All axes CNC controlled
• Upgradeable using modularly adaptable CNC tables
• Also expandable for contour measuring tasks
• Topography measurement for the analysis of 3D surface data with optional Y feed
• Fully enclosed DX version with integrated active vibration damping for the highest demands
